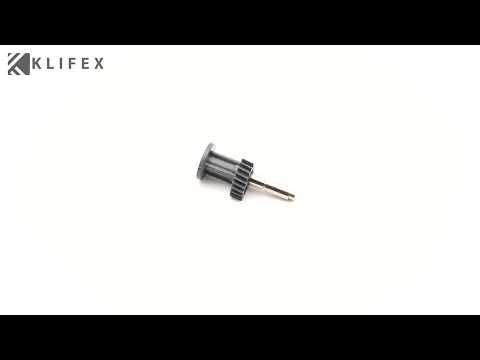

Hella Turbine actuator Position indicator Gear

The position indicator of the Hella turbine actuator regulates the operation of the part as a whole. Its most common malfunction is the erasure of the gear. Breakdowns can be encountered due to the ingress of dirt with large particles into the mechanism, as well as due to fast driving on broken roads and constant postponing of vehicle inspection.

The most common symptoms of a malfunction

Actuator parts are out of order if:

1. The turbine operates in the same mode all the time.
2. Acceleration has deteriorated.
3. The engine does not work at full speed, but only at a certain number of revolutions.
4. Turbine makes loud noises.
5. Fuel is consumed in large quantities.

Carrying out repairs

First you need to drill the gear from the shaft - for this you need a drill with a volume of 6. Then you need to make marks on the angle of the part in relation to the indicator. It is important to then put everything in the correct position.

Repairs can be carried out by yourself by purchasing the appropriate Hella turbine actuator position indicator gear in advance. It is important to choose the right one for a particular model.

It is recommended to replace the indicator immediately, because a malfunction will lead to poor operation of the turbine, and with this, to engine breakdowns.

Order in our online store the Hella turbine actuator position indicator gear at competitive prices. The item is brand new and has been fully tested.

If you have any questions, call the numbers indicated on the site and our manager will provide you with all the relevant information about the assortment of the store.

We have two types available:

1. Position indicator of the electronic turbine actuator, type B.
   Analogues: Sector B, Sector 666, Sector GFB, 36-01-010
   Application in turbines: 6NW009412, Ford 1578770, Ford 1358490, A2C53010862, 6NW008412, 712120
2. Hella turbine servo position indicator, type C.
   Analogues: Sector C, Sector 667, Sector GFY, 36-01-011
   The use of turbines: 6NW009420, 6NW009660, 6NW009550, 6NW009543, 6NW009206, 786880-0006, 753519-0007 , 767933-0008, 753519-0009, 758532-0012, 767933-0015, 787556-0016, 787556-0017, 758532-0019, 786880-5006S, 753519-5007S, 767933-5008S, 753519-5009S, 753519-9009S, 758532-5012S, 767933-5015S, 787556-5016S, 787556-5017S, 758532-5019S, 787556-5022S, 752610-5032S, 6G9Q6K682AC, 6C1Q6K682EN, 6C1Q6K682EM, BK3Q6K682PC, BK3Q6K682CB, BK3Q6K682PB, 8C106K682BB, 8C1Q6K682BB, 6C1Q6K682BC, 6C1Q6K682BE, BK2Q6K682GA, BK2Q6K682CA, 6C1Q6K682EF, 1899517 Ford, Ford 1692434, 1717628 Ford, Ford 1719695, 1760759 Ford, Ford 1372392, 1497697 Ford, Ford 18174189, 1569638 Ford, Ford 1669557, GARRETT 75261032, 6NW009550 HELLA, HELLA 6NW009206, 767649 HELLA, HELLA 752406, G-020, G-033, 73541905
